SLOTTER PRINTING MACHINE
Slotter Printing Machine: These are machines that perform slotting operations in cardboard box production.

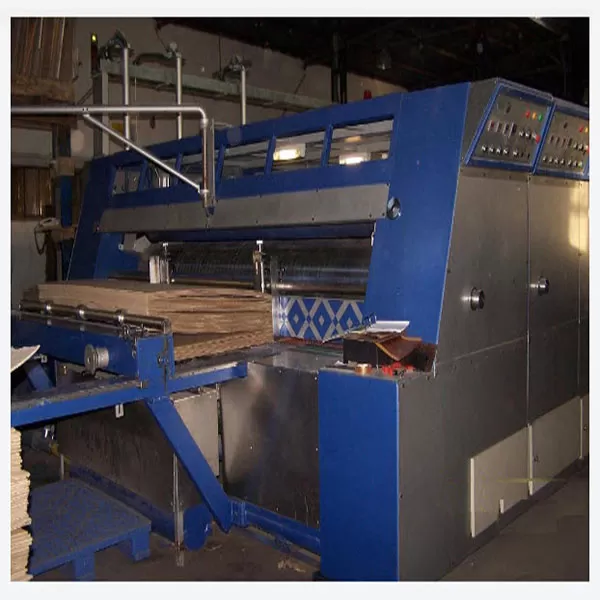

Corrugated cardboard sheets are stacked at the machine's infeed. The rotary slotter machine automatically feeds the sheets and performs slotting operations at the desired locations on the cardboard sheets.
The slotting operation creates the necessary cuts that allow the cardboard to be folded and transformed into a box.
Along with the cutting process, the slotter machine also prints on the cardboard. After printing is complete, the finished cardboard sheet is discharged, where an operator stacks these sheets and transfers them to the next process - gluing or stitching.
Key Features:
- Automatic sheet feeding system
- Rotary slotting technology
- Integrated printing capability
- Precision cutting and creasing
- High-speed production
- Easy operation and maintenance
Applications:
- Cardboard box manufacturing
- Corrugated packaging production
- Custom box designs
- Industrial packaging solutions
Models :
MSLTR 01
- Machine Dimensions: 2000 mm x 625 mm
- Standard Cardboard Working Area: 1900 mm x 625 mm
- Max. Cardboard Working Area: 1900 mm x 750 mm
- Min. Cardboard Working Area: 400 mm x 200 mm
- Max. Cardboard Printing Area: 1600 mm x 625 mm
- Plate Thickness: 5.3 mm
- Min-Max Cardboard Thickness: 2 mm ~ 8 mm
- Motor Power: 7.5 KW
- Capacity: 7000 Pieces/Hour
MSLTR 02
- Machine Dimensions: 2250 mm x 700 mm
- Standard Cardboard Working Area: 2150 mm x 700 mm
- Max. Cardboard Working Area: 2150 mm x 800 mm
- Min. Cardboard Working Area: 400 mm x 200 mm
- Max. Cardboard Printing Area: 1850 mm x 700 mm
- Plate Thickness: 5.3 mm
- Min-Max Cardboard Thickness: 2 mm ~ 8 mm
- Motor Power: 7.5 KW
- Capacity: 8000 Pieces/Hour
MSLTR 03
- Machine Dimensions: 2400 mm x 810 mm
- Standard Cardboard Working Area: 2300 mm x 810 mm
- Max. Cardboard Working Area: 2300 mm x 1200 mm
- Min. Cardboard Working Area: 500 mm x 250 mm
- Max. Cardboard Printing Area: 2000 mm x 810 mm
- Plate Thickness: 5.3 mm
- Min-Max Cardboard Thickness: 2 mm ~ 12 mm
- Motor Power: 11 KW
- Capacity: 9000 Pieces/Hour
MSLTR 04
- Machine Dimensions: 2800 mm x 1030 mm
- Standard Cardboard Working Area: 2700 mm x 1030 mm
- Max. Cardboard Working Area: 2700 mm x 1450 mm
- Min. Cardboard Working Area: 500 mm x 300 mm
- Max. Cardboard Printing Area: 2350 mm x 1030 mm
- Plate Thickness: 5.3 mm
- Min-Max Cardboard Thickness: 2 mm ~ 12 mm
- Motor Power: 15 KW
- Capacity: 9000 Pieces/Hour
MSLTR 05
- Machine Dimensions: 3200 mm x 1340 mm
- Standard Cardboard Working Area: 3100 mm x 1340 mm
- Max. Cardboard Working Area: 3100 mm x 1600 mm
- Min. Cardboard Working Area: 600 mm x 350 mm
- Max. Cardboard Printing Area: 2700 mm x 1340 mm
- Plate Thickness: 5.3 mm
- Min-Max Cardboard Thickness: 2 mm ~ 12 mm
- Motor Power: 18.5 KW
- Capacity: 7000 Pieces/Hour
MSLTR 06
- Machine Dimensions: 3800 mm x 1670 mm
- Standard Cardboard Working Area: 3650 mm x 1670 mm
- Max. Cardboard Working Area: 3650 mm x 1900 mm
- Min. Cardboard Working Area: 600 mm x 600 mm
- Max. Cardboard Printing Area: 3300 mm x 1670 mm
- Plate Thickness: 5.3 mm
- Min-Max Cardboard Thickness: 2 mm ~ 12 mm
- Motor Power: 22 KW
- Capacity: 6000 Pieces/Hour
MSLTR 07
- Machine Dimensions: 4500 mm x 2350 mm
- Standard Cardboard Working Area: 4300 mm x 2350 mm
- Max. Cardboard Working Area: 4300 mm x 2900 mm
- Min. Cardboard Working Area: 750 mm x 950 mm
- Max. Cardboard Printing Area: 4000 mm x 2350 mm
- Plate Thickness: 5.3 mm
- Min-Max Cardboard Thickness: 4 mm ~ 12 mm
- Motor Power: 28 KW
- Capacity: 4000 Pieces/Hour
Please contact us for your slotter printing machine requests.
